GMTF Takes Timber Framing to the Water: The Boat House Project

.Reading this in your email? For easier reading – Click here.

In our latest timber frame project, Green Mountain Timber Frames took to the water! We put in no less than 1000 hours of work to build this gem of a boat house:Timber Frame Custom Boat House Green Mountain Timber Frames

We built the new timber frame structure on beautiful Lake Bomoseen – literally on and over the lake.

Lake Bomoseen_Green Mountain Timber Frames

Lake Bomoseen

The goal was to build a post and beam structure over a boat mooring, allowing a boat to come inside, be lifted out of the water and stored for the winter.

Inside the Boat House_Green Mountain Timber Frames_Luke Larson

The view from inside the Boat House

Hemlock and Oak Wood, from the Property

One particularly exciting aspect of this project is that the hemlock and oak were cut from the property using a portable saw mill. Only on a few rare occasions has Green Mountain Timber Frames been able to cut a new timber frame using materials from the land where the structure will be built­. Luckily for us, this was one of them!

Designed in Collaboration with the Owners

When it came to designing the boat house frame, our very own Luke Larson worked closely with the property owners. It was a great pleasure to work together to create a design that fit the goals and desires of the owners and also worked structurally.

One of those goals was to have an attractive shed roof across the gables. We decided to accomplish this with a secondary top plate, which we started calling an “outrigger,” that turns the corner and wraps across the gable ends.

Outrigger detail of boat house_luke larson_Green Mountain Timber Frames_Vermont

aerial view of timber frame boat house_Green Mountain Timber Frames_Luke Larson

View of “outriggers” from afar

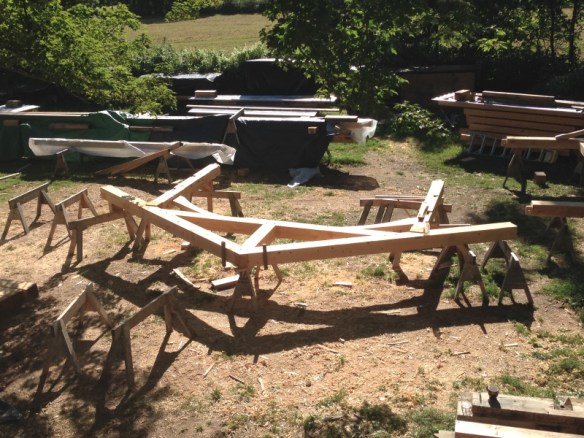

The various dimensions of this frame were each built on saw horses in our yard, so that we could check all the math, angles and joinery as we went.

aerial view of timber frame boat house_Green Mountain Timber Frames_Luke Larson

Using saw horses to work on wall of the Boat House

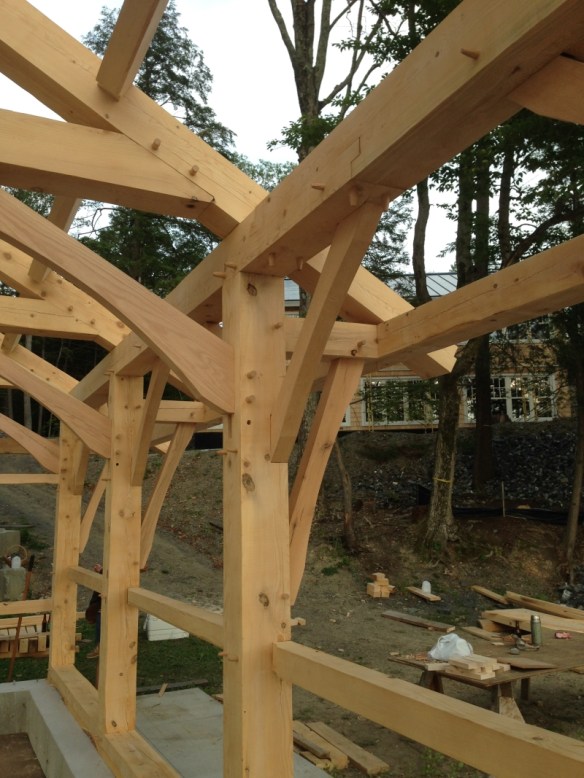

We used king post trusses to frame the bents and curved oak braces throughout the frame.

Timber frames_Green Mountain Timber Frames_Luke LarsonMost of the purlins in the frame were hemlock from the property, but we needed two pick points in the ceiling that would be strong enough to lift a 4,000 pound boat. Heavy oak purlins were installed at two places which are rated for well over 2,000 pound point loads each.

Purlins in custom boat house timber frames of custom boat house_Green Mountain Timber Frames_Luke Larson

The location of the timber frame presented challenges in getting it erected. Since the lay of the land was such that a crane or lull was not feasible, we put it up the old fashioned way – by hand.

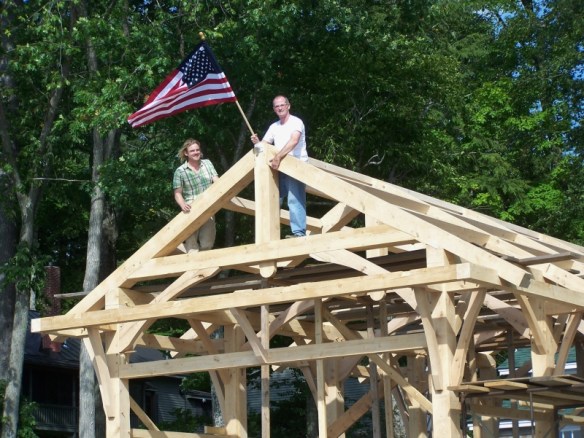

Dan went out in his kayak to take this picture of the flag being raised.

Flag Raising on boat house_Green Mountain Timber Frames_Luke Larson

Here is a what the rafter trusses look like with the roof boards and wall sheathing applied. These were also harvested on the property. Soon there will be a walkway around the inside edges of the boathouse.

Interior view of custom boat house_Boat house completed with siding_Green Mountain Timber Frames_Luke Larson


Corner details of boat house completed with siding_Green Mountain Timber Frames_Luke Larson

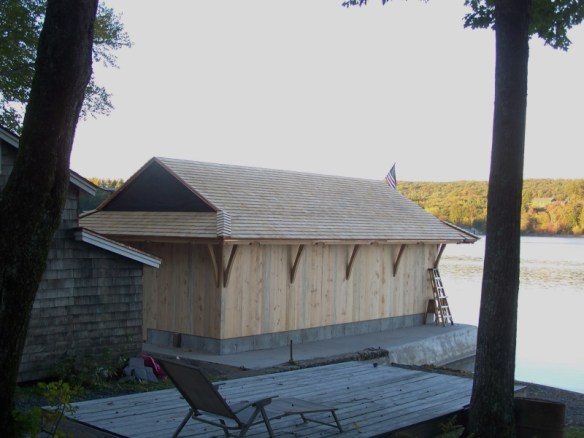

We were especially happy with how the hip corners and eve purlins turned out visually.

Custom Boat House_Boat house completed with siding_Green Mountain Timber Frames_Luke Larson

Next, the structure will receive beautiful salvaged windows, carefully restored, and a layer of cedar shingles on the walls. There will also be triangular windows in the peak. Take a look!

Boat house completed with siding_Green Mountain Timber Frames_Luke LarsonInterested in your very own timber frame boat house? Have another timber frame project in mind? Green Mountain Timber Frames specializes in historic timber frames and restoration projects, but we also erect new timber frames.

Contact us with any questions! Email Luke@GreenMountainTimberFrames.com or call 802.774.8972.
