Restoration of the Roof System on a Corn Crib

Featured

Here at Green Mountain Timber Frames, we have spent the last couple of days working on repairing, sorting, and preparing the roof boards for a little corn crib for sale that dates to the 1800s. corn crib for sale_Vermont Timber Frames

This homemade corn crib was used by a local farm family for generations. We purchased it and took it apart carefully because the sills were completely gone and it was beginning to settle back into the earth.

A future blog will get more into what makes this corn crib really special and how it will be used, but working on the roof this week got me thinking that I would like to lay out in a blog our process of restoration as it involves roof systems and roof boards.

Old Barn Restoration: The Process

Our first step when we get the frame labeled, disassembled and home is to pull the many antique nails. And I mean many! When a frame comes to us, it has usually gone through several generations of roofing material. Often our barns were first roofed with cedar shingles. This roof will last for 30 to 40 years before it has to be replaced.

From Slate to Cedar Roofs

A barn built in the 1700s had at least two or three iterations of cedar before the next big event in New England roofing: the development of the slate industry. In between these generations of roofing materials, the nails were tapped down into the boards rather than being removed. That leaves it to us to get all that metal out. It is fascinating to see the generations of nails in a single board- from hand forged, to cut, to modern wire nails. We tap them from the inside first, careful not to mark the show surface with our hammerheads. Then we flip the board over and pull them out. We save the handmade nails, and throw the rest into our metal recycling bin. Removing nails to restore wooden beamsRemoving nails to restore wooden timbers

Washing the Timber Frame and Boards

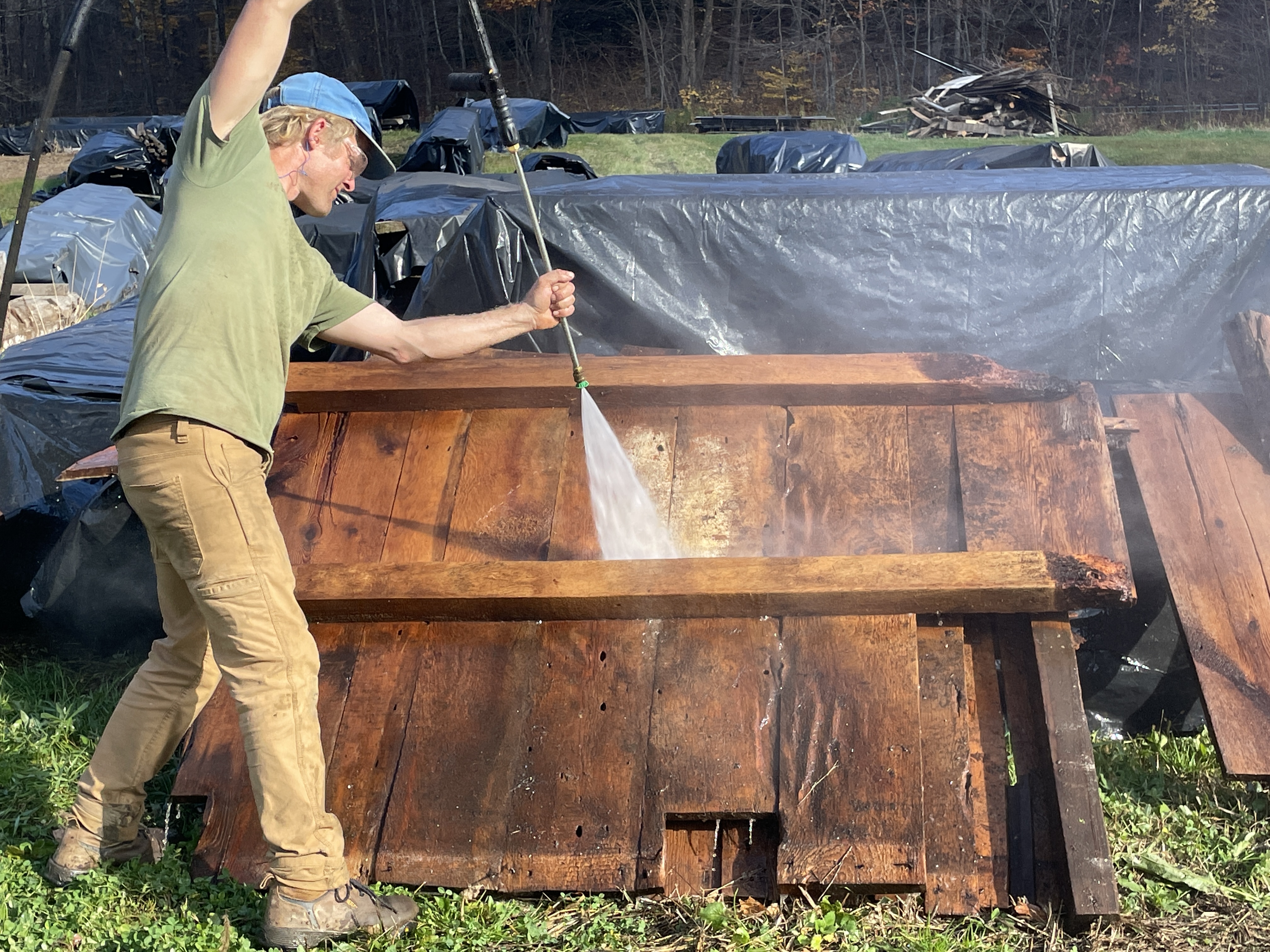

Next, we wash the frame and the boards. It is amazing to watch two hundred years worth of grime fall away from the boards! It feels like painting in reverse – allowing the incredible patina to come through that only a century or two of light and air can create. It is a process that requires great care; if we wash with too little pressure, the patina does not come out, but if we use too much pressure or pause in mid-stroke, the water will raise the grain of the wood and cause an unsightly mark. IMG_3482

We can not put away the boards when they are wet because of the risk of mold. So we dry them in the sun like so much laundry on washing day. The end result of all this handling is worth it when we see the sun shining off these vintage boards. They will make a stunning ceiling when the barn is re-erected. Restored timbers drying in the sun

Reassembling the Rafter System

Next, we are ready to assemble the rafter system. We make any necessary repairs and replacements to the rafter system, and then we assemble one half of the roof at a time. In the next photo, you can see the five-sided ridge beam from a restoration we completed last summer. That particular roof had four braces that went from rafters to ridge beam.

5 sided ridge beam barn restoration

We check the peg holes to make sure that the new pegs will hold strong and true. If necessary, we re-drill a peg hole where a “new” rafter was installed or where we made a repair to a rafter tenon.

restored timber rafters | Green Mountain Timber Frames

Laying out the Timber Roof Boards

Now we lay out the roof boards. All the roof boards are labeled as we take the barn down, but we very often have to straighten some edges and switch out fatigued boards for others with similar color. Remember all those generations of roofing material? Very often there was a drip somewhere at the end of the lifespan of each layer of cedar, and thus very often we have to replace some of the boards.

There are blond “shadows” on the underside of the boards where contact with a rafter shielded them from light and air. We do our best to line these shadows back up on top of rafters. Complicating this process is the fact that half-round or hewn rafters are rarely straight, so the spacing of the shadows varies depending on the spot in the roof. Doing this work while flat on the ground at the shop allows us to be as careful as possible with color matching, board spacing, and shadow hiding. Luke Larson | Green Mountain Timber Frames

Restored roof boards

Checking the Roof Board Labels

As our final step in this part of the restoration process, we carefully go through the boards and check the labels. We have a system of marking the outside of the boards so that we can efficiently apply them when the rafter system is standing.

Timber Frame Label System

The end result is a timeless visual ceiling. Or, perhaps we should rather say time-full. Here is what it looks like on one of our completed frames that now stands as a barn home:

Restored Timber Frame Ceiling

Back to Roof Restoration!

Let’s get back to that roof restoration that we completed yesterday. Here are a few more photos from this week’s restoration of our little corn crib roof. With a footprint of 14×18, this barn is a miniature of some of the larger barns we work on, but it is not small or modest in craftsmanship.

The half-round rafters are beautifully tenoned into the five-sided ridge beam, and the rafter tails have an elegant “swoop” at the eve. When we put this frame back up on its new foundation, the roof system will be ready to support many future iterations of roofing materials.

Stay tuned to learn more about this restoration, and about the exciting future home for this frame.

Have questions about restored barns? Dream of living in a timber frame home?

Contact me!
Luke – 802.774.8972 | Luke@GreenMountainTimberFrames.com

Below – enjoy more pictures from the roofing project!

Tenons on the Pawlet Corn Crib rafters

Tenons on the Pawlet Corn Crib rafters

IMG_2620

Rafter tails with swoops on the Pawlet Corn Crib

An Ingenious Corn Crib

Featured

Corn Crib for Sale in Vermont

I first looked at this corn crib for sale last spring. The owner of the property called me, and in his very Vermont way explained that there was a barn on his property that his family could no longer maintain. The property had been in his family for quite some time, and he wanted this barn to be saved. I took a drive to Montpelier, I took a look, and I fell in love.

Old barns for sale_timber frame barn

I purchased the timber frame and we recently disassembled the barn. It was a “corn crib,” a name that applies to a very specifically designed barn. As the name implies, it was used for the drying and storing of corn as well as oats and other food stuff from the garden.

A Corn Crib Built to Last

As the farmer whose family has lived here for three generations told me: “When you moved onto a raw piece of land back in the day, you didn’t much care about your first house. You put something up quick to keep you dry and not frozen, and then you built something real nice to preserve food for the winter.” Well, the craftsmen who built this corn crib did it “real nice.”

Old barns for sale_timber frame barn_with staircase

These stairs lead to a lovely second floor with a steep roof pitch and two windows. We discovered two wooden barrels with sapling dovetailed rings that were tucked into bins. Sawdust was packed tightly around the barrels inside the bins, and it was clear that something very precious and sensitive to heat had been stored in these.

corn crib timber frame rafters

A Remarkable Louvered System

In order to dry and then preserve the corn, the walls were sided with an ingenious louvered system. The siding itself is narrow and gapped to allow lots of air movement through that would dry the corn out after harvest. However, the corn also had to be protected from rainstorms and drifting Vermont snow.

The solution? The builders crafted louvers that can rotate on wooden pegs to close the gaps between the siding. handcrafted louvers_old barn for sale

louvers_old barn for sale

The louvers were attached to each other by small staples so that they could be swung shut in gangs when the farmer saw a storm blowing in. It gave me great pause for reflection when I found a few kernals of corn left behind — from how many decades or even a century before? Of course, I had to save them to see if these corn seeds would germinate in my garden. (Stay tuned)

antique corn crib_corn seeds

We started the disassembly a few weeks ago by removing the roofing and then carefully labeling each roof board.

As we removed the roof boards, we were delighted to discover a name, scrawled in large red cursive, across several of the boards. The letters were faded, but readable. old timber frame barn_roof boards

A Peek into the History of the Corn Crib

Later that evening, I showed the property owner these boards, and it led to him sketching out for me more of the story of his farm. His great-grandfather had worked for someone with the same last name that we discovered on the boards. The gentleman was elderly and apparently farming was not easy, neither physically nor financially. He was unable to fully pay his farm help for the last few years of work on the farm. When the last family member died, the farm was left to the hired hand who had been loyal and worked without pay. That is how the family that I bought this corn crib from came to own the property.

Soon enough, we were down to the bare frame, which is hand hewn beech and pine.

small timber frame barn for sale

After labeling the floorboards, we popped out the ash tree pegs, and began tipping down the bents.

Carefuly Disassembly of the Corn Crib

We were grateful to the maple trees that stood sentry at the entrance as we were disassembling this small 18×22 frame by hand- without the use of a crane or other motorized equipment. In fact, we were able to disassemble this frame without ever firing the generator we had brought with us. It was a frame put up without electrical tools, and one that we took down with only minimal use of our battery tools.

vintage corn crib_tipping up

We labeled every mortise and tenon joint, and after 6 work days start to finish, the frame was down. We shipped the vintage beams and boards back to our shop and cleaned up the site of the structure.

Vermont site_barn restoration

I found it incredibly poignant to see the trees still standing around the perimeter of where this adorable corn crib has stood for two hundred years. I am proud and grateful, to and for the family that has cared for, used, and maintained this building for generations, to our skilled and careful team who took the time to pull each peg with conscientiousness and care, and to the trees from whom this frame was built so very long ago.

Are you looking for a corn crib for sale?

Let me know – I’d love to help.
Luke – (802) 774-8972 | luke@GreenMountainTimberFrames.com



Green Mountain Timber Frames Has a New Home

Featured

If you’ve been following the Green Mountain Timber Frames Facebook page, this is old news, but I know that not everyone has heard…

We have a new home!

Green Mountain Timber frames staff

The GMTF team our new property!

That’s right, GMTF has purchased a brand new homebase in our hometown of Middletown Springs, VT. In fact – fittingly – the new property is located right near the home of GMTF founder, Dan McKeen.
When Dan started the company over 30 years, he could not have imagined how it would grow. I have been honored to take over the reigns and build up a team of talented, caring and fun-loving staff members who join me in restoring historic buildings and perserving the oldest barn frames and timber structures of Vermont and New England. Together, we look forward to carrying on Dan’s dedication and passion for restoration and the preservation of history.

So what’s the new property?

As a team, we had been looking for some time to move our restoration shop to a larger and more open piece of land, and we found just the right place to dismantle and restore our many old barns for sale.
In choosing a piece of land, I had three key priorities:
  1. First, I am deeply committed to staying in the beautiful little mountain town of Middletown Springs. With a tight-knit community, small school and beautiful setting, this town where Green Mountain Timber Frames began has been supportive and it is home for the majority of our team.
  2. Second, I wanted a space with plenty of open space for restoration work, careful storage of timbers, and that has the room to stand up some of our vintage frames. I also needed it to be on a paved road so that we can get large trucks and trailers in and out all year- even in Vermont’s famous mud season! In a town with only a few miles of paved road, this really narrowed down the options.
  3. Third, I wanted a space that would be beautiful and conducive to creative work.
Well, this property has it all!

Green Mountain Timber Frames New Barn Home

The site currently has a small house and one large barn. We will be brainstorming and planning for how best to facilitate our restoration work on vintage barns, corn cribs and post and beam structures of all shapes and sizes. The spot also boasts a gorgeous 14-acre meadow, where we had a team celebration the afternoon of the closing.
 Green Mountain Timber frames new home in Vermont_2
Green Mountain Timber frames new home in Vermont 4

Celebration in the meadow

The farmstead has been kept in organic practice, which is right in line with our philosophy of preservation and care for this precious earth. The maple forest is beautiful and has a whimsical stream running through it.

Green Mountain Timber frames new home in Vermont

There are about 1400 maple sugar taps on the property, so stay tuned and watch for the Green Mountain Timber Frame label next spring on a bottle of something very sweet! ​

Green Mountain Timber frames new home in Vermont 3

Mostly – I want to say thanks!

I want to give a huge thank you to everyone – near and far – who has supported this endeavor of the restoration of our New England historical barns, and especially to those hear in Middletown Springs who have been so supportive of our work to purchase this new space.

~Luke Larson, Owner of Green Mountain Timber Frames


Looking for barns for sale?

Want to live in a piece of history? Give us a call!
802.774.8972

Discoveries Made While Salvaging Wood: The Story of the Henderson Barn

Featured

When you do barn restoration and construction in the mercurial seasons of Vermont, the work in the wintertime differs greatly from what we do all summer long. Oftentimes, we spend winter months restoring beams indoors or lining up projects for the warmer months.
Recently, on one cold January day, we went to visit a father-son slate roofer team in Bennington, Vermont. We were there, as we often are, about an old barn. But this time, we weren’t actually interested in restoring the early 1800s barn. Rather, we wanted to purchase the disassembled barn so we could restore and use the beautifully aged beams in other timber frame projects.

Parts Barns: Salvaging Wood from Historic Homes

During our restoration process, we frequently have to source replacement parts to compensate for the toll that leaky roofs and unstable foundations have taken over the past two hundred years on our restoration projects. Whenever possible, we like to use matching vintage wood from similar aged and style barns. In order to get these replacement parts, we purchase “parts” barns. Most often, it is a barn that has not fared well and sadly is beyond the restoration stage. We salvage the sound elements of these frames in order to use them in full restoration projects.

A Remarkable Barn from Bennington

The parts barn that we purchased this January was particularly fascinating and, along with the wooden beams, we found stories of a family and their amazing history! While the frame was beyond repair as a unit, the remaining sound elements are incredible. The rafters were hewn, and the posts were 14 x 14-inch hand hewn oak.

Bennington Vermont Circa 1800

The barn dates from before 1800 and was built by the Hendersons, a family boasting a longstanding history in Bennington, Vermont.  At some point in history, the Vail family is in the story of this property as well, and this is another deeply embedded family in the town and its history. Today’s owners shared this map with me;  on it, you can see how the land parcels in the area were divided among families back in 1800.
1800s Map_Bennington VT Map

1800s Bennington VT land map showing the parcels

If you read through the names on each parcel, you can see that there were many Harmons on this hill and many of these families played a significant role in the events surrounding the Battle of Bennington in 1777.  It is so fascinating to see how the families started out with large tracts of land and then subdivided their tracts to keep family close.

Meet the Barn Owners

We purchased the barn after disassembly from a father/son team of expert slate roofers who live about 1/4 mile from the old Henderson property. The barn was going to be torched, and they couldn’t bear the thought of that history going up in ashes. So, since winter is a tough time to do slate roofs, they took on the tall task of disassembling this frame. They clearly gave great care to this task, as the beams and boards are unharmed, de-nailed, and washed.

Photos: Clues to the Barn Home’s Past

Here are a couple of old photos, dating from the first decade of the 1900s, that show the stately Henderson house. You can just see the barn in the background behind the horses head.
Henderson historic barn home_Vermont_1900s

1900s photograph showing Henderson home in the background

In the next photo, you will see a healthy maple tree next to the couple. It gave me chills to see the dissipating stump of this tree when I looked at the property, and to imagine all the life that has happened in this spot, and in the barn, before and after these photos were taken.


1902 Wedding Photo in front of the Henderson House

The father and son made an incredible discovery when they were disassembling the barn. Underneath the three-inch floor of the barn, they found a civil war era rifle! Imagine the possible stories behind this weapon being hidden there!
We hope to honor the early settlers of this property who crafted the barn, those who used it for two hundred years, and also the neighbors who invested enormous effort and time into making sure that these beams can stand true again in another historical structure.

Do you have a barn home worth salvaging?

Contact us by email or call (802) 774-8972.

Way Out West: Timber Framing on Whidbey Island

Featured

Last fall, we were way Down East, tipping up a beautiful frame on the coast of Maine. Fast forward a few months, and the crew of Green Mountain Timber Frames found ourselves a world away, this time delivering a restored frame to Whidbey Island, off the coast of Washington State.

Welcome to Whidbey

Our talented building crew traveled west to deliver this 28 x 38-foot frame from the 1700s to a wonderful client. The gambrel style barn frame will be a beautiful new home, made from these historic timbers. We had restored the timbers back home in Vermont and then carefully prepared each beam before tying the frame aboard this flatbed for the long drive west.

Preparing historic timber frame for shipment

Out on Whidbey, we found a sweet Air BnB on the island and had the privilege to wake up to this view each morning:

Whidbey Island Green Mountain Timber Frames

Barn Raising: Day 1

Here’s a look at how we tipped up the frame, and the progress we made each day. On Day 1, we began with a pre-raising blessing. Then, we spread out the posts on the deck before tipping each one up by hand. The frame had four 28-foot girts. You can see us placing one of them below, with an assist from a telehandler.

Let’s get a closer look at these beams!

Historic vermont timbers_Whidbey Island_Day 1

Closeup on the Gunstock Posts

Notice how the gunstock post tops each have two tenons. One locks into the top plate on the eve wall, while the second receives and holds the girt that crosses the width of the building. The girt end also has a half-dovetail that further holds everything together.

Below, you can see the gunstock post standing strong against Washington State evergreens. A friend came by to use it as a perch and take in the view.

bald eagle perched on restored girt

Barn Raising: Day 2

We spent the second day installing the second-floor joist system. One unique element of this frame was that the girts and floor joists project out beyond the top plates. The rafters then sit out beyond the top plate, gaining two extra feet of living space on the second floor. You can see this overhang in the bottom right image below.

There is a 38-foot chestnut timber that runs down the center of the structure. It is half lapped over the 28-foot girts, creating a beautiful joint over the central posts. In the top right picture above, you can see the labeling in the beams. The original builder created these marks using a small gouge chisel.

Second floor deck

Second floor deck

By the end of day two, we had completed the second floor deck and were ready to begin installing the queen system, which will support the rafters and frame the space for the second-floor bedroom and bath.

Barn Raising: Day 3-4

We spent the next two days working on the upper cube (the Queen System) of the frame and preparing to put up the rafters. We installed the heavy three-inch beech planks that run the length of the eve. The rafters sit on this overhang. The queen system, which supports the rafter pitch change on this gambrel, has eight more gunstock posts as well as two more 38-foot timbers and four 22 foot queen girts.

On the right, you can see how the heavy eve planks are half lapped to each other, and pegged to the overhanging floor joists and girts. In the upper queen post to girt connection, we added a hidden steel plate and threaded rod that will reinforce the good work of the wooden joinery to ensure that the roof can never spread.

Barn Raising: Finishing Up!

The next step was for us to install the rafters and apply the vintage roof boards. Under clear blue skies, we finished up the project.

This slideshow requires JavaScript.

We had a wonderful time on this project and made some new amazing friends on Whidbey Island. The building wrapped up with applying vintage roof boards on the structure, which we covered with tar paper for weather protection. We also installed the original, arched-collar ties. We are so grateful to the craftspeople from the late 1700s who built this frame, all who helped us to save it from demolition, our friend and client in Washington, and to the crew who will now close it in and make it into a home.

Green Mountain Timber Frames crew

Our amazing team!



If you dream of living in a historic home, let us know! We do travel and would love to build a beautiful timber frame home for you.

Contact us at Luke@GreenMountainTimberFrames.com (802.774.8972)

Dismantling the Pawlet Corn Crib (and Looking for an Owner!)

Featured

As spring makes its arrival here in Vermont, we have taken the opportunity with the warmer days to dismantle a small timber frame barn near our shop.

IMG_0576

This frame measures 14×17 feet.

The frame is part of a hillside farm that was settled in the late 1700s. This barn had a combination of hand forged and cut nails in siding and roof boards, and we believe it dates to the 1820s or earlier.

Pawlet corn crib

The frame has been sinking into the ground because there was no real foundation. We caught it just in time!

This barn was used for storage of both corn on the cob and oats. The interior of the barn was partitioned off on one side so that oats could be stored in tall wooden bins.

We absolutely love the homemade sliding doors at the bottom of the bins that allow for the oats to pour out. Imagine our surprise when we lifted the door and found that oats remained inside! Of course, we had to keep some of these vintage oats for our collection, as well as some of the old corn cobs that we found. We hope that whoever purchases this barn will be interested in the artifacts and history of the space. No wonder storage space in the shop is always tight!

We started our dismantling by stripping the slate off the roof. We then labeled and removed the roof boards.

In the next photo, you can see the slotted vertical siding boards. This was a typical method of siding for corn barns because it allows air flow through the building that will dry out the corn. What is unusual in this case is that the slotted siding was installed from inside, and then two large swinging doors were installed on the outside. After much head scratching, we concluded that this unusual method allowed for the doors to be closed in inclement weather to keep out the Vermont storms. The doors must have been strategically opened during good drying weather after harvest.

IMG_1094

This adorable frame has a petite ridge beam and half-round rafters.

The surrounding mountains at this hillside farm are stunning.

IMG_1065

On a beautiful sunny spring day, we popped the pins out of the frame and were ready for disassembly.

IMG_1053

IMG_1055

The frame is made from beech and pine trees. The color on these posts is stunning.

Once the frame was down, we pulled all of the nails and shipped the beams and boards back to our shop for restoration.

IMG_1070

We like frames that are manageable to disassemble and move by hand!

Our next steps on this frame will be to power wash the beams and boards and then make repairs to the bottoms of the posts where they fatigued over the last two hundred years. For the post bottom repairs, we will use similar hand hewn inventory and an English scarf joint to make a strong and beautiful repair.

This frame would make an incredible little cabin, mudroom addition on a house, or it could become a small barn once again to house chickens, goats, or sheep. Who knows, it may even house oats and corn once again.

Interested in learning more?

See drawings and learn more about this vintage timber frame or Contact Me.

The Race to Raise a Barn: 12 Days on Long Island

Featured

In December, we spent twelve days down on Long Island putting up an early 1800s carriage barn. The original structure was 18-feet wide by 40-feet long. In order to accommodate the goals of our client, we added a saltbox addition onto the barn using vintage salvaged materials from our inventory. We loved the resulting look of the structure.

carriage barn raising_Long Island_Green Mountain Timber Frames_9

We spent the first part of our stay constructing and installing the sills for the building. Once they were completed, we assembled the bents on the ground and organized our rafters, braces, connecting timbers, and roof boards.

The crane arrived early on a frosty morning, and the first bent was erected and set into the sill mortises.

Raising the first Bent- Green Mountain Timber Frames

Bent number two went up next without a hitch, and we installed the horizontal connecting ties and braces.

Bent 2 slips into sill mortises

Installing horizontal timbers to connect bents

By lunchtime, we had bents three and four up, and all the pegs driven into braces and horizontals. We spent that afternoon installing a temporary deck to work off safely.

Bent three is set in place_Green Mountain Timber Frames

Driving more pegs_Green Mountain Timber Frames

On day two with the crane, we began installing rafter trusses. They were assembled on the ground, and the crane operator did an amazing job of guiding them right to the mortises in the top plates.

Rafter trusses are flown into place__Green Mountain Timber Frames

Glenn did a great job stabilizing and “aiming” the rafters with a tag line from the ground.

IMG_0351

carriage barn raising_Long Island_Green Mountain Timber Frames3

With the short daylight of December, we had no time to spare, and we were on sight from dawn till dusk. In the next photo, Jesse inspects a door post he has just installed.

carriage barn raising_Long Island_Green Mountain Timber Frames2

By the time we left Long Island, via the Orient Point ferry, we had the roof boards on and water proofing paper installed to protect the frame. The next crew to come in will install the structurally insulated panels that will keep this structure thermally tight and cozy.

carriage barn raising_Long Island_Green Mountain Timber Frames_8

The barn will be used as a garage on the first floor, with a studio guest apartment on the second floor. One of our favorite features of this barn is the twisted and gnarly nature of the horizontal beams that free span the upstairs living space. They have so much character!

carriage barn raising_Long Island_Green Mountain Timber Frames_7 (2)

One real treat of the trip was getting to catch up with two fellow Vermonters, Peter and Christian Moore. They are friends from nearby us in Vermont who are truly artists in stone and brick. Peter and Christian are busy building a historic reproduction of the central fireplaces and chimney in a 1780s house that we put up on the same property earlier in the year.

carriage barn raising_Long Island_Green Mountain Timber Frames4

This central chimney has three fireboxes on the first floor, plus an incredible domed oven! The brick being used is salvaged from early colonial New England, and there is a brick arch that curves up to the timber ceiling.

carriage barn raising_Long Island_Green Mountain Timber Frames5

We can’t wait to go back and see Peter and Christian’s finished work! More of their artistry can be seen here at  Peter Moore Masonry.

carriage barn raising_Long Island_Green Mountain Timber Frames_6

This project was a real joy, and we loved getting to know the very fine carpenters who will be closing in the carriage barn and finishing it off.

Do you want to help preserve a piece of history? Dream of living in a restored barn home? Contact Us!  (802) 774-8972

Link

Last spring, we tipped up a new timber frame barn here in Vermont. We had first begun discussing the barn with the family over a year previously, and worked closely with them on the design for a 28-by-40 foot barn.

We shaped the timbers over the course of the winter, and it was ready for the arrival of spring… as were we! The owners will be using the new post and beam barn as a seasonal living space and as a place to indulge in their wine-making hobby. The project and our clients were a delight, and we want to share the story of this frame.

Timber frame barn in vineyard green mountain timber frames

During the design phase of the project, we decided with our clients to use local hemlock timbers, and settled on 10-by-10 inches as the size for all the posts, girts, and top plates. The timbers were sawn at a sawmill just five miles from the barn location.

Post joinery is cut for timber frame

We decided to construct this frame using a principal rafter and purlin system. This means that each 28-foot bent section has massive rafters which support horizontal purlins. In this design, the roof boards are put on the frame running vertically.

Shaping swoops on heavy purlin timbers

Jesse shapes the “swoops” on the ends of the heavy purlin timbers.

Another exciting feature of the barn design was the inclusion of four dormers in the roof structure. The barn will have a two-thirds loft where the dormer interior can be enjoyed up close, and the dormers in the cathedral space will provide natural light and aesthetic balance for the exterior.

One of the beautiful things about timber frame construction is that we can craft each joint and wooden connection “on the ground.” That way, on raising day, each labeled joint slides together and receives the oak pegs. Since we wanted to go through this preparation process on the dormers as well as with the larger sections of the barn, we assembled each side of the roof system flat on saw horses and got to work.

40 foot long roof system_Green Mountain Timber frames

This roof section is 40-feet long, and laying it out flat on the ground allowed us to check all the joinery and test-fit the dormers

We wanted to use a traditional ridge beam for the dormers. Because the pitch of the roof was 11 inches of rise for every 12 inches of run, the ridge beam had to be shaped to match the roof pitch rather than remaining at square, 90-degree angles. This made laying out and cutting the compound angles challenging. I remembered my grandfather’s old-fashioned miter box that he used when I spent time in his shop as a kid. We replicated my Papa’s angle box to cut our dormer ridge beam, and it worked great!

jig box for cutting ridge beam green mountain timber frames

We built a jig box to help us cut the complex angles on the dormer ridge beams.

dormer joinery on new timber frame roof

Matt inspects dormer joinery

We constructed and fit the four bents and assembled each of the 40-foot eve walls. We used math, geometry, and sharp tools to make certain that the frame would rise up straight and true on its foundation in the spring.

Timber frame bent assembled green mountain timber frames

Jesse enjoys the completion of a gable bent. There is an upper doorway framed in this gable that will lead from the loft out onto a small balcony.

Soon enough, spring arrived, and we were ready to put the frame up. Our client and his son helped us to whittle the proper points on the oak pegs. We use a “shaving horse” to shape the pegs. This ancient design works beautifully to hold the peg hands-free while a draw knife or spokeshave is used. Footwork operates the clamping mechanism.

shaping oak pegs green mountain timber frames

Our shaving horse works great for shaping pegs!

Next, we began assembling bents and driving the pegs to hold them fast.

Pegs are driven into a bent before it is tipped up

Pegs are driven into a bent before it is tipped up

Before we knew it, we were tipping up the final bent.

lifting final bent into timber frame baren

We absolutely love the way the four post bent design draws the eye down the center of the building and gives the whole thing a cathedral feel.

timber frame erected and pegged in Vermont

The lower cube of the frame is erected and pegged.

The next step was to install the top plates, which tie the bents together and support the weight of the rafter system.

green mountain timber frames new construction

Next, the principal rafters went up. As we set each pair, we fed the tenoned purlins into place, as well as the braces that we placed in the rafter system in order to make it ridged.

eve purlin placed in roof and dormers installed

We set an eve purlin into place

It was great fun to assemble the dormers – this time standing upright on the roof system instead of sitting flat on saw horses at the shop. We set the little ridge beams, rafters, and dormer posts. The pegs went in, and we were delighted with the result.

dormers and pitch on timber frame roof

The dormers are 5-feet wide, and the pitch is matched to the main roof.

Here is a crow’s eye view of the completed rafter system and the dormers:

purlin extensions and steel plates to create a generous roof overhang

We used purlin extensions and steel plates to create a generous roof overhang.

hemlock roof boards Green Mountain Timber Frames

The warm colors of the hemlock and roof boards are wonderful.

It was a great joy to collaborate with this family to create a structure in a beautiful setting that will be used and enjoyed for a very long time to come.

Here is hoping that many a glass of wine, crafted in this barn, gets raised by friends and family for generations! Cheers!


Do you dream of living, working or making wine in your own timber frame? At Green Mountain Timber Frames, we restore and build timber frame barns and homes, both new and old.

Give us a call.

completed dormer_Green mountain timber frames

I can imagine sitting in this dormer with a cup of coffee and enjoying the view for a very long time!

A New Home for Mortise & Tenon Magazine

Featured

Today’s guest post comes from Joshua A Klein, a talented furniture conservator/maker from the Maine coast and the brainchild behind Mortise & Tenon Magazine

We have enjoyed working with Joshua over the past year and are delighted and grateful to have him write (and photograph!) for the Green Mountain Timber Frames blog. Our whole team has poured over his publications and we can not recommend his work strongly enough to our fellow woodworkers and kindred spirits in appreciation of yesteryear’s craftsman. It has been a true honor to collaborate with Joshua, his family, and his team.

Mortise and Tenon Timber Frame Shop Rafters Ridge Pole-14

The GMTF team along with the crew from Mortise & Tenon, in front of the future Mortise & Tenon headquarters

It’s long been a dream of mine to have an antique timber frame workshop to build furniture in. Sure, I could have built a brand-new stick-frame shop and hid the frame underneath boards but as a period furniture maker and conservator, I revere historic craftsmanship. I find it inspiring to work at my craft while surrounded by tool marks left behind by artisans 200 years ago. The awe-inspiring craftsmanship of our ancestors was something I wanted to connect to in the deepest way. I wanted to be immersed in it.

When it came time to put up a new workshop/headquarters for my publication, Mortise & Tenon Magazine, I sought out a hand-hewn frame from Green Mountain Timber Frames. The 24’ x 26’ beech and chestnut frame was built in Pawlet, Vermont around the year 1800.

About a year ago, Luke purchased the neglected house and he and his crew carefully disassembled it for restoration. The frame was in great shape with the exception of the rafters and ridge beam, which suffered fire and leak damage. I went down to see the frame in person this July and became even more excited about it. This frame is absolutely gorgeous.

Luke and I discussed how to rebuild the damaged rafter system. I told him I wanted old material, as close to the original roof system as possible. He did some digging and came up with a five-sided pine ridge beam as well as round cedar rafters from a barn in Addison, Vermont, virtually identical to the original.

He and his crew replicated the original roof system using these reclaimed materials. They took great care to leave the original surfaces unmarred. They also de-nailed and washed all the 1-1/4”-thick sheathing. As Luke put it, “There is nothing like the patina of old boards.” I totally agree.

Mortise and Tenon Timber Frame Shop Sheathing-9

The five-sided ridge beam and rafters are wonderfully matched to the style and size of the original.

Raising the Frame

This September, Luke and his crew brought the restored frame up to my place in MidCoast Maine. Matt lifted the assembled bents with the telehandler as Luke directed it into the mortises. It was incredible to watch these two work together. Their subtle but effective communication showed that they’ve been doing this a long time. As each tenon slipped seamlessly into its mortise, I couldn’t help but think about how well the resurrection of this frame honored the original makers.

Mortise_and_Tenon_Timber_Frame_Shop_Raising_Bents_Day_Two-12

The final gable bent is set into place

Mortise and Tenon Shop Building Timber Frame Raising Day Three-13

John trims the excess length off the oak pegs

The whole team got involved with the methodical placement of the rafters. Luke said the first pair of rafters is the hardest, especially when they have diagonal braces and a collar tie to be installed along with them. After the first gable end was secured, the rest dropped into place without issue. As they worked through down the ridge, the manual lift helped stabilize it and hold it at the optimum height (decreasing as they went along). The whole process took several hours of careful adjustments and minor paring of the tails that were a hair too wide for their pockets.

Mortise and Tenon Timber Frame Shop Rafters Ridge Pole-6

The first pair of rafters being set, and pegs driven into the rafter braces

By midafternoon that day, the last gable was installed. We drove the final pegs into the joinery and the crew made tiny adjustments before the ceremonial tacking of the evergreen bough onto the ridge.

Mortise_and_Tenon_Timber_Frame_Shop_Rafters_Ridge_Pole-16

Placing an evergreen bough on a newly raised timber frame is an ancient tradition, meant to respect the trees from which the frame was built.

The next day, we nailed gorgeous 200-year-old hemlock roof sheathing in place. Because the crew had already cut, fit, and labeled the boards before bringing them up, the installation process went quickly. The patina in these boards is sacred to this crew. Because they work so hard to de-nail, power wash, repair, and straighten edges, they are very careful not to scratch the beautiful interior show surfaces.

Finishing the Shop

I have to pinch myself standing inside this frame. It far exceeds anything I ever imagined and I consider myself blessed to be the next caretaker for this historic structure. I am leaving the interior unfinished with rough sawn old sheathing boards and the frame completely exposed. All the insulation will be installed in a 2×4 wall built outside of the frame and then exterior sheathing attached to that. I’ve also purchased a pile of antique window sashes (with wavy glass) that I am beginning to restore for the shop. From the inside, it will look like an 18th-century cabinetmaker’s workshop in all its rough-hewn glory.

Mortise and Tenon Timber Frame sheathing-10

The vintage sheathing boards are thick hemlock, and the patina is something that only time can create through the play of air and light.

I am so grateful for this crew and the frame that they’ve restored for us. Luke, Matt, Isaac, and John are not only exceptional craftsmen, but they are incredible people to spend time with. I left the experience inspired.

This building is the new home of Mortise & Tenon Magazine. All our articles will be written and edited here, our instructional videos will be filmed here, and in this place woodworking classes will happen. We will make many memories within these walls.

IMG_5923

Thank you, Luke and crew, for the care you’ve taken with this restoration. Your conscientious workmanship honors the craftsmen who built it over 200 years ago. I hope M&T’s use of it will continue to honor the work of their and your hands.

You can read more about the history of this timber frame in our blog from back in 2016 about the Dutch Cape House from 1800.


Interested in owning your own historic post and beam frame?
Drop us a line.







Camp Moonrise…Or How Our Old Barn Home on Lake Champlain Found Its Name

Featured

Steven KelloggToday’s guest post comes from the talented author and illustrator, Steven Kellogg. We so enjoyed working with him and are honored to have him write for our little blog!

I am an artist who, for decades, on rambles throughout the northeast, has admired old barns. Recently, I have been thrilled with the acquisition of a rugged, hand hewn barn frame The barn itself had been slowly deteriorating on the abandoned farm it had once served, and then was subsequently rescued, and restored.

4

The historic gunstock frame stood tall and true on the Champlain Island of North Hero

It came into my life because, with our family grown and my wife having developed some health issues that required a residence that is handicap accessible, I decided to build a home with supportive features to accommodate those needs on a piece of property on the shore of Lake Champlain that we had owned for a number of years.

I envisioned a house with several spacious, wheelchair accessible rooms overlooking the lake, that, most importantly, would have an old barn at its core. The interior would be designed so that classic proportions, a richly-toned original ceiling, and sculptural, hand hewn beams would serve as the major architectural themes.

Window View_Steven Kellogg Timber Frame Home

The windows look out over the beautiful lake, and towards the barn’s original location

My search for just the right barn led me to Dan McKeen of Green Mountain Timber Frames, and then to his friend and colleague, Luke Larson, a master carpenter in Middletown Springs, Vermont. They had a number of impressive barn frames available in their inventory. Each one had been rescued from its original location on the farm where it had originally served. Each of these restored barn frames was like a rural cathedral with beautiful, simple, architectural lines, massive, hard wood beams, and magnificent notched and pegged construction.

Amongst these treasures, one of them stood out because of its superior details and appropriate size. I could picture it perfectly on our property. This particular historic frame came with added appeal: it was originally built around 1780 on one of Lake Champlain’s North Hero Island farms, not far from its prospective new home on our wooded knoll overlooking that very same lake.

When Luke and his skilled crew erected the barn frame on our wooded site, it seemed so harmoniously situated that it gave the impression that it had always been there.

Because our land is on the New York side of the lake, we resolved to honor the Adirondack tradition of calling rustic lakeside and woodland homes “camps” and giving them names. Prompted by the fact that the reconstructed North Hero Island barn faced our favorite monthly spectacle — the full moon lifting above the Vermont mountains and the lake — we decided it would henceforth be known as “Camp Moonrise.”

Interior View_ Steven Kellogg Timber Frame Home

The sign over the hearth reads “Camp Moonrise”

Now that we are happily putting down roots in this beautiful building and enjoying every hour of living here, we will be forever grateful to Luke, Dan, and their team of master craftsmen for their passion for old barns and their creative talents, which made this opportunity available to us.

Read more about the process of restoring this old barn in this blog.  For the Camp Moonrise project, Green Mountain Timber Frames partnered with the talented staff at Cloudspitter Carpentry and Hall Design Group.


More Images of the Beautifully Restored Barn HomeCamp Moonrise

This slideshow requires JavaScript.

The Little Barn Playhouse Comes Home

Featured

If you’re reading this in your email, please click here for better viewing.



Today’s blog is from Green Mountain Timber Frames founder, Dan McKeen.

It was 35 years ago that I first set out to build my twin daughters a playhouse. I was a young timber framer and a proud father of two, four-year-old girls who loved the outdoors, exploration and pretend just as much as I do. Eager to create a special home where they could hide and climb and create magical worlds together, I built this tiny little treehouse for them back in 1982.

35 year old timber frame treehouse

Rachel and Amanda in their very own home.

Rachel and Amanda spent hours in the wooden treehouse, just as I had hoped. But by and by as the years passed, the playhouse went out of use and was in need of some more young love.

So 25 years ago I sold the playhouse to a friend. When I asked him if I could buy it back, he agreed and said that he was looking for a bigger, small structure for himself. So we found him a “milkhouse” and traded the playhouse for the milk house with a few thousand dollars to make up the difference.  (I’ve mentioned this story before and if you follow this blog, you may recall reading about it in my posts here and here.)

New Playmates for the Little Playhouse

The playhouse spent the last 2+ decades in my friend’s yard, where it was loved and played in, on and around and bore witness to countless secrets whispered under its eaves. But my friend’s child, like mine, grew older and in the meantime, I had become a grandpa. This could only mean one thing:

It was time for the playhouse to come home!

And come home, it has! I embarked upon this latest barn” restoration with the energy and enthusiasm of a six-year-old! I took the playhouse home and gave it a full makeover so it can house games and delight for dozens of years to come.

Restoring the Playhouse

In anticipation of the homecoming, I first cleared out just the right spot for the playhouse.  My friend Ed pruned some Cherry tree branches and a sturdy platform deck was created for the little house. (How fitting that the wood we used for the platform was excess wood from the milkhouse Ira barn project we did in 2013.) It is all old growth Spruce, treated with linseed oil, so it will last for a good many years.

Next, I headed over to my friend’s place to transport the playhouse back to my yard. In the image below, you can see the little barn house arriving to the Green Mountain Timber Frames shop for restoration.

playhouse arriving for restoration at green mountain timber frames.jpg

At our shop it was time to begin the restoration work. (After all, restoring barns is a bit of a passion of ours!)

Restorint barn style kids play house barn_4

There were boards and framing to restore, hinges to fix, countless corners to wash and windows to replace. I also had my dear friend Nance help give the playhouse a faux paint touch up to make the blue siding look like vintage barn board.

Moving barn playhouse to new location

Here’s the refurbished playhouse being set in its new home.

After placing the playhouse on the platform, I needed to give my grandkids (and every kid around) an easy way to get inside. We had recently removed a pine tree that was threatening our house. We used the stump as a base for the staircase, carving the lowest step right into its hearty wood. The stump will provide good stability to help keep the stairs from shifting in Vermont’s inevitable freezes and heaves.

Once the playhouse was set in place, it was time for some fun! I outfitted the little building with a kitchenette, a mailbox and plenty of soccer balls. Then, Ed added in a new rope swing and topped it all off with a 90 yard zip line.

The angels were with us throughout this project. I asked a former client, now friend, to coach me on zip-lining. He let me know that he had 275 feet of cable in his garage, waiting for just the right use. In the end we needed 273′. Serendipitous indeed!

Christening the New (Old) Playhouse!

This past Sunday, the new playhouse was inaugurated in style! No less than 12 kids – my grandchildren among them – came by to test out the house and the swings.

The verdict? I have a feeling my yard will be filled with many little feet and bigger voices – and I couldn’t be happier. There are dragons under the floorboards and pirates hiding in the bushes and so much more adventure awaits!

Enjoy this slideshow of the playhouse today!

This slideshow requires JavaScript.

Love barns?

Want your own barn home? Let us know!

Sill and Post Repairs…Plus More Split Rail Fence!

Featured

Reading this in your email? For easier reading – Click here.

We recently finished the first phase of a barn repair project in Springfield, Vermont, stabilizing a gorgeous little barn from the early 1800s.

1_Barn Repair_Green Mountain Timber Frames

History of this Historic Timber Frame

The vintage timber frame is part of the historic Kirk homestead. We believe it was William Kirk Junior who built this barn. The son of a revolutionary war soldier from Springfield, William purchased the farm in 1809, and most likely built this structure at that time.

In 1834, the land records note that William Kirk mortgaged the farm to a Mr. White for $300. It may have been a tough year for farming, or perhaps William needed cash to work on the second barn on the property, which is attached to the older frame.



2_Large Vermont Barn_Green Mountain Timber Frames

The large barn is connected at a perpendicular angle to the smaller old structure. Farmers often sought to create a protected barnyard area for livestock and equipment, and the “L” profile of the attached barns does just that.

The records state that the loan was to be paid back annually over three years in “good salable neat stock or grain.” William must have successfully paid off the mortgage, as the property stayed in the family for a total of 97 years before being sold.



In 1864, William sold the farm to his son Aaron. Thirty years later, Aaron conveyed the farm to his younger brother Reuben, a Civil War veteran who had fought in the 10’th Regiment, Vermont Volunteer Company. The property stayed in the family until 1905. Many thanks to the current owners for sharing their careful historical research with us!

A Barn in Need of Repair

While the barn had beautiful stone foundation work, the water had pushed and the frost heaved against the stone and sills, and the joinery of the structure was deeply strained. The stone wall under the gable was collapsing, and four different posts had “torn their trunnels” and dropped down out of the upper beams.



3_Corner Post Beam_Green Mountain Timber Frames Vermont

This corner post dropped as the sill beneath it deteriorated, and the pegs broke allowing the tenon to drop out of the mortise.



Our Approach to Restoration

Our project was to jack the posts back home again, and to replace the sills. The barn was listing dangerously towards an eve because braces had failed. We used a series of come alongs as we lifted posts in order to coax the wall back towards plumb.



4_5 sided ridge beam_green mountain timber frames

Note the beautiful five-sided ridge beam! Many of the braces had failed, and in this photo we are coaxing towards the western horizon. On the far wall, you can see where one of the posts has dropped.

As we lifted, we were able to feed the tenons home.





5_tenon to horizontal timber_green mountain timber frames

We were able to bring this tenon right back into the horizontal timber. Even the siding boards slid back into the grooved channel in the beam where they started out.





7_lifting historic barn in vermont_Green Mountain Timber Frames

Here we are lifting the corner of the building in preparation for new pressure treated sills



The Split Rail Fence

But wait- what about the split rail fence? After posting our last blog about the fencing used as collar ties in Tunbridge, we were surprised and delighted to discover split rail fence pieces used as floor joists in the newer and larger of the Kirk barns!



8_Vintage floor joist_Green Mountain Timber Frames

Old William Kirk was a resourceful fellow. Most likely the original floor joist snapped, and so a nearby rail was conscripted for the purpose.



A Barn Rebuilt to Last!

Now that the frame has repaired sills and is stabilized, the terrific crew at Terrigenous Landscape Architecture will re-build the dry laid stone foundation and wall on the gable end. Scott and his team have already installed a drainage system around the exterior of the barns, which will protect the repaired barn complex and stonework from future freeze and thaw cycles.

We look forward to returning to Springfield in the fall after the stone work is accomplished, to continue frame and siding repairs. In the meantime- happy fencing to all you farmers out there!


Do you have a vintage barn in need of repair? Dream of living in a historic barn home?

Contact us!
Luke@GreenMountainTimberFrames.com



“Did a Farmer Build This Barn?”

Featured

Reading this in your email? For easier reading – Click here.

Since we inspect dozens of barns every year, and because we’ve got lots of barns for sale, we often receive this question. In the 18th century, who, exactly, was it that was crafting these beautiful structures that required such skill and attention to geometry, math, fine woodworking skills, and practicality?1790-barn-with-5-sided-ridge-beam

At times, we have heard the question asked in a mildly derisive manner, as if it was built by farmers rather than carpenters. At other times, we are asked in a tone of reverence for the broad spectrum of skills required and the appreciation of raw materials, motivation, communal commitment, and just plain hard work involved. It is in the latter spectrum that we solidly fall in our assessment of our New England structures and their creators from so long ago.

Our Latest Vermont Timber Frame Project

This week we spent two intense days disassembling a beautiful addition on a house in Tunbridge and Chelsea, Vermont. Two towns, you may be asking? Yes indeed-the town line ran right through the center of the property, and the house is in Tunbridge, while the addition was in Chelsea. While mid-stream on the addition dis-assembly, a town truck from Tunbridge came by, and the driver stopped. Leaning far out the window of the dump truck, he called to us, “What, moving out of Chelsea, eh?”

The joke was followed by much guffawing and laughter. I am not sure why that dump truck had been driven to the literal dead end of the road, but I am suspicious it may have been for the purpose of telling that joke- and I love it! News of renovations and changes travel fast in our small Vermont towns.

timber frame addition in the snow green mountain timber frames

The first time I looked at the addition, the snow banks were deep.

Early gunstock timber frame green mountain timber frames

What a difference a couple of months can make in Vermont! The house is a beautiful 1820s gunstock frame.

Let’s get back to the theme of “farmer built.” As someone raised on a Vermont dairy farm, and accustomed to the great joys and hardships of farming, I can not state strongly enough my appreciation for the barns and their builders of yesteryear. We at Green Mountain Timber Frames are so fortunate to get the insider’s view of many local barns, and we have been able to trace the progression of a master timber framer through our valleys by observing unique “signature” qualities of frames.

Recently, we noted a very unique rafter birds mouth detail for example that we have seen in only two local structures- which “happened” to be only 20 miles apart. Was this a case of farmers sharing ideas and techniques with their neighbors, or is it because a master builder traveled around the area coaching and aiding as farm families built their barns?

Hand hewn rafters green mountain timber frames

The rafters are beautiful petite spruce with a half-lap joint at the peak.

In the case of this structure in Chelsea/Tunbridge, we found an extra special clue that the addition was indeed farmer built. They used pieces from a split rail fence as collar ties to support the rafters!

split rail collar tie green mountain timber frames

I would love to have heard the conversation where they decided to grab some rails from the nearest fence! With the property being high on a mountain, it would have been a long trip to a saw mill, and the split fencing was right there. “Keep the job moving!” we builders like to say.

collar tie and hand made nails green mountain timber frames

Note the beautiful hand-made nails that hold the collar tie in place. The family for whom the country road is named were blacksmiths as well as farmers, and I am certain they made these nails themselves.

The posts of the addition had been devastated by carpenter ants, and the foundation was crumbling. Because of this, we will not be restoring the frame. Rather, we will use the hemlock roof boards and the beautiful rafters on the future restoration of another building.

vintage hemlock roof boards green mountain timber frames

The roof boards have beautiful color that only time can create.

We are grateful to the property owner for his desire to see the materials recycled. Just like the farmer who originally put this structure together, we want to recycle all that we can. In fact, we left those vintage pieces of split rail fence behind with the property owner, and I expect they may be put right back into the fence that is only thirty yards from the house to “live another day” back where they came from.

Are you looking for historic barns for sale? Want a new-old barn home?
We’d love to help!

Luke@GreenMountainTimberFrames.com or (802) 774-8972
